Orbital Shakers

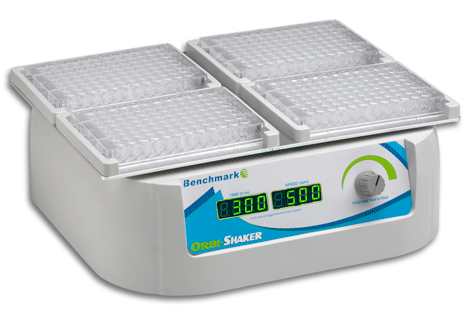

OrbiShaker MP
The Orbi-Shaker MP.™ is designed with a 3mm mixing orbit, optimized for thorough mixing of microplates and/or PCR plates. Up to four plates (standard or deep well) can be placed on the included platform and are instantly secured without the use of springs, clamps or tools.

Digital speed control up to 1500 rpm
3mm orbit for thorough mixing in microplates
Includes platform for up to 4 microplates
Cold room and incubator safe

SPECIFICATIONS

Speed:	Variable, 200 to 1500 rpm
Orbit:	3mm
Max. Capacity:	Up to 4 microplates
Operating Temp. Range	+4 to +65°C
Dimensions: (w x d x h)	11 x 10.7 x 4.5 in. 28 x 27x 12 cm
Weight:	12 lbs (5.5kg)
Electrical:	Universal Voltage, 100-240V, 50-60Hz 250W
Warranty:	2 Years

BT1502	OrbiShaker MP microplate shaker/vortexer with platform for 4 microplates, 100-240V (US Plug)	$901.90	Call to Order
BT1502-E	OrbiShaker MP microplate shaker/vortexer with platform for 4 microplates, 100-240V (European 2 prong plug)	$901.90	Call to Order

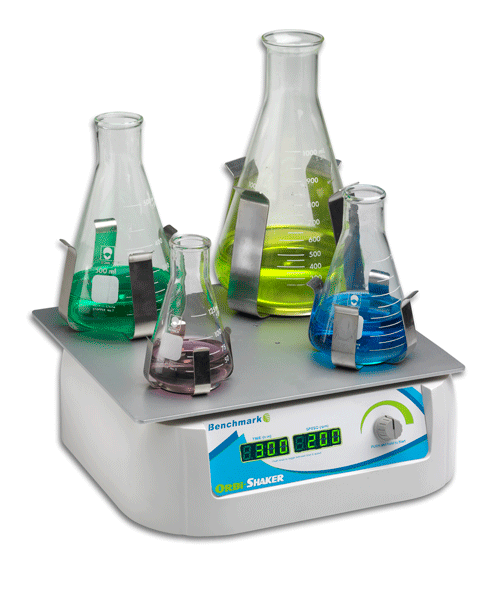

Orbi-Shaker JR

Orbi-Shaker JR.
Modeled after the popular Orbi-Shaker, the Orbi-Shaker JR.™ is a "mini sized" replica, designed for smaller capacity applications and laboratories where bench space is at a premium. The shaker includes a 9.5 x 8" platform that mixes at a 19mm orbit, perfect for thorough mixing and aeration in Erlenmeyer flasks.

Digital speed control up to 300 rpm
Horizontally circular 19mm orbit for aeration & mixing
Extremely compact, perfect for low to medium capacity applications
Instantly exchange flask clamps with MAGic Clamp™ accessories

SPECIFICATIONS

Speed:	Variable, 50 to 300 rpm
Orbit:	19mm
Max. Capacity:	4 x 1L (9 lbs / 4 kg)
Speed Increment:	10 rpm
Platform Dimensions:	9.5 x 8 in./ 24 x 20 cm (Included) 11.5 x 9.5 in./ 29 x 24 cm (MAGic Clamp)
Operating Temp. Range	+4 to +65°C
Dimensions: (w x d x h)	11 x 10.7 x 5 in. 28 x 27x 13 cm
Weight:	12 lbs (5.5kg)
Electrical:	Universal Voltage, 100-240V, 50-60Hz 250W
Warranty:	2 Years

BT302	OrbiShaker JR. with flat mat platform, 100-240V (US Plug)	$921.80	Call to Order
BT302-E	OrbiShaker JR. with flat mat platform, 100-240V (European 2 prong plug)	$921.80	Call to Order
H1000-MR	MAGic Clamp™ universal platform for flasks & tube racks (11 x 9.5in)	$224.20	Call to Order

Orbi-Shaker with MAGic Clamp

Orbi-Shaker with MAGic Clamp
The powerful Orbi-Shaker is capable of mixing a 14lb load capacity up to speeds as high as 300 rpm. The standard platform (included) features a non-slip, rubber coated surface, ideal for tissue culture flasks, petri dishes and staining trays.

High capacity, up to 9 x 500ml, 5 x 1L or 2 x 2L
Horizontally circular 19mm orbit for aeration & mixing
Digital speed control up to 300 rpm
Instantly exchange flask clamps with MAGic Clamp™ accessories

SPECIFICATIONS

Speed:	Variable, 30 to 300 rpm
Orbit:	19mm
Max. Capacity:	5 x 1L (14 lbs / 6 kg)
Speed Increment:	1 rpm
Platform Dimensions:	13 x 12 in./ 33 x 30 cm (Included) 14 x 12 in./ 35 x 30 cm (MAGic Clamp)
Operating Temp. Range	+4 to +65°C
Dimensions: (w x d x h)	11 x 13 x 3 in. 28 x 33x 7.5 cm
Weight:	25 lbs (11.25kg)
Electrical:	120V or 230V, 50-60Hz 600W
Warranty:	2 Years

BT3000	Orbi-Shaker™ with rubber mat platform (13"x12") 115V	$1,496.34	Call to Order
BT3000-E	Orbi-Shaker™ with rubber mat platform (13"x12") 230V	$1,496.34	Call to Order

Optional Platforms

H1000-MR	MAGic Clamp™ universal platform for flasks & tube racks	$224.20	Call to Order
BT3000-MR	MAGic Clamp™ magnetic clamp, 2000ml Erlenmeyer (max. 2)	$243.24	Call to Order
H1000-P-SP	Universal spring platform for unique vessel types	$483.62	Call to Order
H1000-P-MP	Dedicated Platform, holds 4 standard micro plates	$509.32	Call to Order
H1000-P-500	Dedicated Platform, 5 x 500ml Erlenmeyer flasks	$317.02	Call to Order
H1000-P-250	Dedicated Platform, 8 x 250ml Erlenmeyer flasks	$317.02	Call to Order
H1000-P-125	Dedicated Platform, 12 x 125ml Erlenmeyer flasks	$317.02	Call to Order

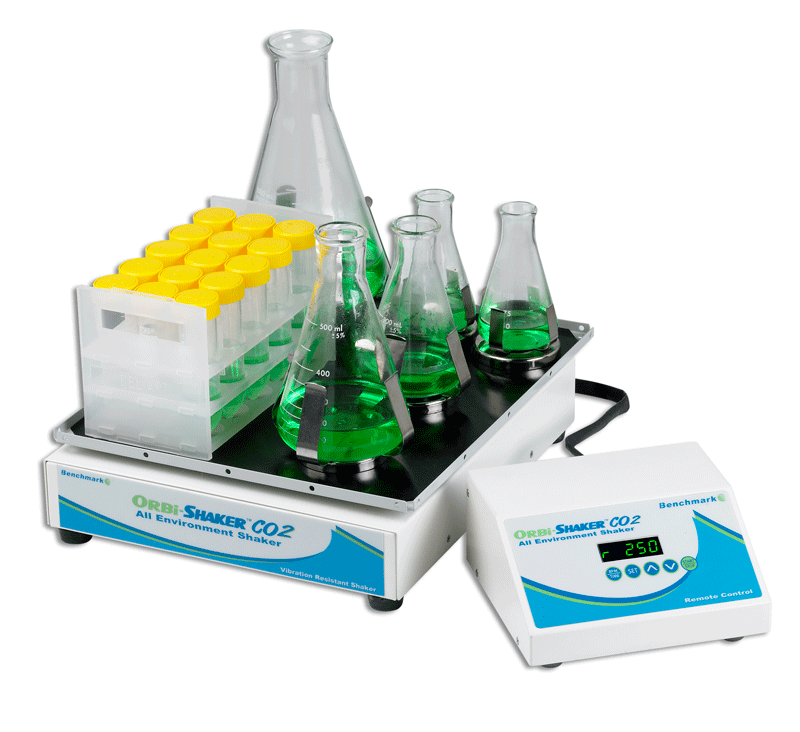

Orbi-Shaker CO2 with MAGic Clamp
The new Orbi-Shaker CO2 is designed for shaking, mixing and aeration applications in extreme environments, including CO2 incubators. It can withstand temperatures from 0 to 60°C and humidity levels up to 100%.
To avoid contamination, unintentional release of gas or deviations from protocol, both speed and time are set via the included remote control module. The remote controller allows the user to set and adjust the shaker settings without opening the chamber door(s).

Designed for use in C02 incubators & other extreme environments
Remote controlled, adjust settings from outside the chamber
Horizontally circular 19mm orbit for aeration & mixing
Instantly exchange flask clamps with MAGic Clamp™ accessories

SPECIFICATIONS

Speed:	Variable, 30 to 300 rpm
Orbit:	19mm
Max. Capacity:	5 x 1L (14 lbs / 6 kg)
Speed Increment:	1 rpm
Platform Dimensions:	13 x 12 in./ 33 x 30 cm (Included) 14 x 12 in./ 35 x 30 cm (MAGic Clamp)
Cord Length:	60.5 in. / 154 cm
Operating Temp. Range	0° to +65°C
Dimensions: (w x d x h)	11 x 13 x 3 in. 28 x 33x 7.5 cm
Weight:	25 lbs (11.25kg)
Electrical:	120V or 230V, 50-60Hz 600W
Warranty:	2 Years

BT4001	Orbi-Shaker™ CO2 with remote controller and rubber mat platform (13"x12"), 115V	$3,025.02	Call to Order
BT4000-E	Orbi-Shaker™ CO2 with remote controller and rubber mat platform (13"x12"), 230V	$3,025.02	Call to Order

Optional Platforms

H1000-MR	MAGic Clamp™ universal platform for flasks & tube racks	$224.20	Call to Order
BT3000-MR	MAGic Clamp™ magnetic clamp, 2000ml Erlenmeyer (max. 2)	$243.24	Call to Order
H1000-P-SP	Universal spring platform for unique vessel types	$483.62	Call to Order
H1000-P-MP	Dedicated Platform, holds 4 standard micro plates	$509.32	Call to Order
H1000-P-500	Dedicated Platform, 5 x 500ml Erlenmeyer flasks	$317.02	Call to Order
H1000-P-250	Dedicated Platform, 8 x 250ml Erlenmeyer flasks	$317.02	Call to Order
H1000-P-125	Dedicated Platform, 12 x 125ml Erlenmeyer flasks	$317.02	Call to Order

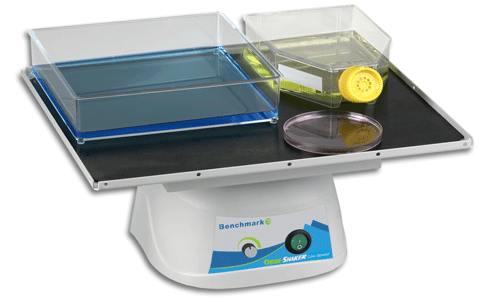

Orbi-Blotter
The Orbi-Blotter™ features a gentle orbital motion with speed control down to as little as 3 rpm, making it the ideal orbital choice for low speed applications, such as blotting, washing, staining/destaining, etc. A large 14x12 in. work surface is included along with a non-slip rubber mat for holding trays, dishes, plates and other flat vessels.

Gentle orbital motion for gel applications
Horizontally circular 19mm orbit for aeration & mixing
Large 14" x 12" work surface
Variable speed control from 3 to 70 rpm
Incubator and cold room safe

SPECIFICATIONS

Speed:	Variable, 3 to 70 rpm
Orbit:	19mm
Max. Capacity:	3 x 2L (9 lbs / 4 kg)
Platform Dimensions:	14 x 12 in./ 35 x 30 cm
Operating Temp. Range	+4 to +65°C
Dimensions: (w x d x h)	14 x 12 x 8 in. 35.5 x 30.5 x 20 cm
Weight:	7.5 lbs (3.4kg)
Electrical:	120 or 230V, 50-60Hz 50W
Warranty:	2 Years

BT30	Orbi-Blotter™ with non slip rubber mat platform(14x12"), 115V	$782.89
BT30-E	Orbi-Blotter™ with non slip rubber mat platform(14x12"), 230V	$782.89

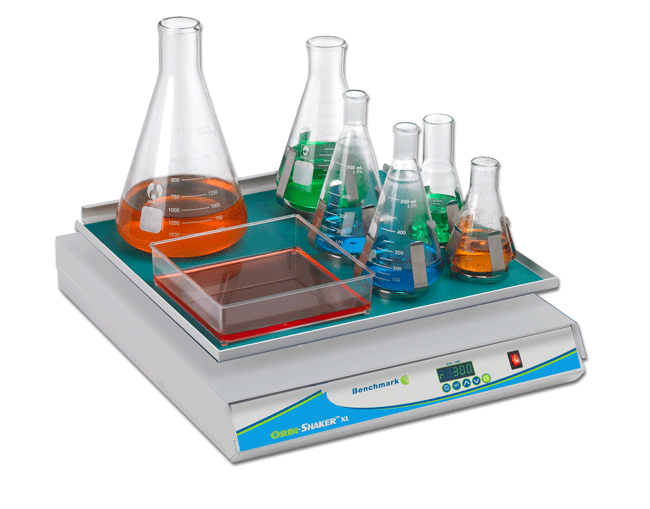

Orbi-Shaker XL with MAGic Clamp
The Orbi-Shaker XL offers flask capacity that far exceeds that of most benchtop models. With a large 18 x 18 inch platform and a powerful, beltless motor drive, the Orbi-Shaker XL is capable of mixing up to five 2L flasks or nine 1L flasks simultaneously. The included, non-slip rubber mat platform is ideal for low speed applications, while the convenient MAGic Clamp™ platform is also available for high speed mixing of Erlenmeyer flasks, tube racks or microplates. The MAGic Clamp™ allows for instant flask clamp exchange without the use of tools, screws or any other hardward.

Large 18 x 18", up to 5 x 2L
Convenient, Benchtop design
Horizontally circular 19mm orbit for aeration & mixing
Instantly change flask clamps with MAGic Clamp™ accessories

SPECIFICATIONS

Speed:	Variable, 30 to 300 rpm
Orbit:	19mm / 3/4 in.
Max. Capacity:	5 x 2L or 9 x 1L
Max. Load:	65 lbs (30kg)
Speed Increment:	1 RPM
Platform Dimensions:	17.8 x 17.8 in./ 45 x 45 cm
Dimensions: (w x d x h)	18.5 x 21.25 x 5 in. / 47 x 54 x 12.5 cm
Weight:	65 lbs (30kg)
Timer:	1 min. to 48 hours / continuous
Electrical:	115 or 230V, 50-60Hz, 450W
Warranty:	2 Years

BT1010	Orbi-Shaker™XL orbital shaker with flat mat platform, 115V	$2,861.96	Call to Order
BT1010-E	Orbi-Shaker™XL orbital shaker with flat mat platform, 230V	$2,861.96	Call to Order

Optional Platforms

H1010-MR	MAGic Clamp™ universal platform for flasks & tube racks (18 x18")	$313.21	Call to Order
H1010-P-SP	Universal Spring Platform	$528.36	Call to Order
H1010-P-MP	Platform, holds 6 standard micro plates (max. 1)	$684.49	Call to Order
