| Temperature Control Baths
|
|
|
|
|
|
|
|

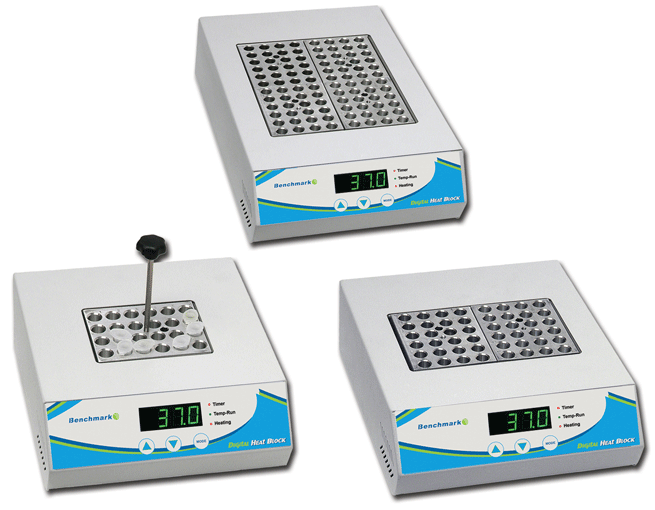

Digital Dry Baths
|
Digital Dry Baths
Benchmark Digital Dry Baths provide accurate "set and walk away" digital temperature selection, eliminating the need for external thermometers and repetitive "fine tuning" of a temperature control knob. Simply enter the desired
temperature on the digital touchpad and the Benchmark Dry Bath provides accurate temperature with real time monitoring that continuously maintains the selected temperature within ±0.2°C. In addition, a digital timer is built into the touchpad display. Although it is not designed to shut off the heater, it can be used to alert the user that a chosen time interval has timed out.
The cavities of the high grade aluminum blocks are precision machined to match the conical size and shape of 0.5, 1.5, 2.0, 15 and 50ml tube sizes, providing
unsurpassed temperature transfer. Assorted blocks are available for compatibility with nearly all common laboratory tubes and plates. Custom blocks are also available upon request.
All Benchmark dry baths offer a built-in user recalibration function, to guarantee long term temperature accuracy. Each dry bath includes an easy to use block lifter, with a temperature insulated handle for quick, convenient exchange of blocks, even while they're still hot..
- Digital accuracy and convenience
- Single, double and four block capacity
- Assorted blocks for a wide variety of tube sizes
- Custom blocks available upon request
SPECIFICATIONS
|
Temp. Range:
|
Ambient +5 to 150°C |
|
Temp. Accuracy:
|
+/- 0.2°C |
|
|
0.1°C
|
|
Temp. Uniformity:
|
+/- 0.2°C
|
|
Timer:
|
1 to 999 minutes |
|
|
7.8 x 9 x 3.2 in./ 20 x 23 x 8 cm (Single)
8.7 x 10.3 x 3.2 in. / 22 x 26 x 8 cm (Dual)
8.7 x 14 x 3.2 in. / 22 x 35.5 x 8 cm (Four)
|
|
Block Dimensions:
|
3 x 3.75 x 2 in. / 7.6 x 9.5 x 5 cm |
|
Electrical:
|
120 or 230V, 50-60Hz
Single: 350W, Dual: 600W, Four: 1000W
|
|
Warranty:
|
2 Years |
|
| BSH1001 |
One-Block Digital Dry Bath 115V |
$417.00 |
|
| BSH1001-E |
One-Block Digital Dry Bath 230V |
$417.00 |
|
| BSH1002 |
Two-Block Digital Dry Bath 115V |
$521.00 |
|
| BSH1002-E |
Two-Block Digital Dry Bath 230V |
$521.00 |
|
| BSH1004 |
Four-Block Digital Dry Bath 115V |
$842.00 |
|
| BSH1004-E |
Four-Block Digital Dry Bath 230V |
$842.00 |
|
|
| BSW01 |
Solid Block (for slides / machining) |
$112.00 |
|
| BSW01-DR |
Custom drilling for BSW01 (sold separately), up to 36 holes |
$152.00 |
|
| BSW02 |
Block, 48 x 0.2ml tubes or 6 PCR strips of 8 tubes each |
$112.00 |
|
| BSW1500 |
Block, 24 x1.5ml centrifuge tubes (conical) |
$112.00 |
|
| BSW1520 |
Block, 24 x 1.5ml or 2.0ml centrifuge tubes |
$112.00 |
|
| BSW05 |
Block, 24 x 0.5ml centrifuge tubes |
$112.00 |
|
| BSW5MT |
Block, 12 x 5.0ml centrifuge tubes (17mm diameter) |
$112.00 |
|
| BSW15 |
Block, 12 x 15ml centrifuge tubes |
$112.00 |
|
| BSW10 |
Block, 20x10mm test tubes or 20x2.0ml centrifuge tubes |
$112.00 |
|
| BSW13 |
Block, 20 x 12mm or 13mm test tubes |
$112.00 |
|
| BSW50 |
Block, 5 x 50ml centrifuge tubes |
$112.00 |
|
| BSW1516 |
Block, 12 x 15mm or 16mm test tubes |
$112.00 |
|
| BSWCMB |
Quick-Flip™ Block, 24 x 1.5ml tubes, or 32 x 0.2ml and 14 x 0.5ml tubes |
$151.00 |
|
| BSWPCR1 |
Block, PCR plate 96 x 0.2ml, skirted or non-skirted For 1-block dry bath only |
$254.00 |
|
| BSWPCR2 |
Block, PCR plate 96 x 0.2ml, skirted or non-skirted For 2 or 4-block dry bath only |
$245.00 |
|
| BSWMT |
Block, Micro Titer Plate, skirted or non-skirted For 2 or 4-block dry bath only |
$185.00 |
|
|

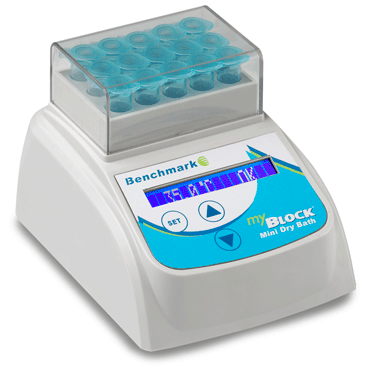

MyBlock Mini
|
MyBlock Mini
Benchtop control of sample temperature has never been this easy or economical. The new MyBlock Mini fits almost anywhere and can even be used "on-the-go" in cars, boats or wherever a12 volt power source is available.
Its simple touch pad control with digital display is designed for "set and walk away" temperature selection and unrivaled accuracy. At less than 5 inches wide, MyBlock Mini is truly the first personal block incubator.

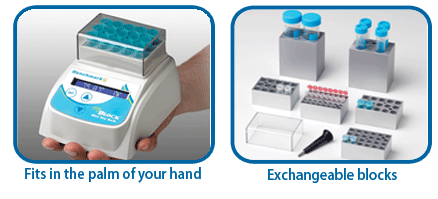

- Compact, fits in the palm of your hand
- Exchangeable blocks for 0.2 to 50ml tubes
- Clear cover ensures temperature uniformity
- Room temperature to 37°C in just 2 minutes
- Portable; optional 12V power adapter
- Custom blocks available upon request
SPECIFICATIONS
|
Temp. Range:
|
Ambient +5 to 100°C |
|
Temp. Accuracy:
|
+/- 0.5°C |
|
|
0.1°C
|
|
Temp. Uniformity:
|
+/- 0.2°C
|
|
|
4 x 6 x 4.5 in./ 10.5 x 15 x 11.5cm
|
|
Block Dimensions:
|
1.85 x 2.8 x 1.25 in. / 4.7 x 7.1 x 3.2 cm |
|
Weight:
|
2 lbs / 1kg |
|
Electrical:
|
Universal Voltage, 100 to 240V, 50-60Hz, 50W
|
|
Warranty:
|
2 Years |
|
| BSH200 |
MyBlock™ Mini Dry Bath, 100-240V (US Plug) |
$241.00 |
|
| BSH200-E |
MyBlock™ Mini Dry Bath, 100-240V (European 2 prong plug) |
$241.00 |
|
| BSH100-A12 |
12v vehicle power adapter |
$45.00 |
|
|
| BSH100-02 |
Block, 40 x 0.2ml tubes or 5 PCR strips of 8 tubes each |
$85.00 |
|
| BSH100-05 |
Block, 24 x 0.5ml centrifuge tubes |
$85.00 |
|
| BSH100-1213 |
Block, 15 x 12-13mm tubes, 60mm tall, no lid |
$97.00 |
|
| BSH100-1232 |
Block, 15 x HPLC or Cryovial tubes |
$85.00 |
|
| BSH100-15 |
Block, 15 x1.5ml centrifuge tubes |
$85.00 |
|
| BSH100-1520 |
Block, 15 x 1.5ml or 2.0ml centrifuge tubes (conical) |
$85.00 |
|
| BSH100-150 |
Block, 4 x 15ml centrifuge tubes |
$108.00 |
|
| BSH100-500 |
Block, 2 x 50ml centrifuge tubes |
$108.00 |
|
|

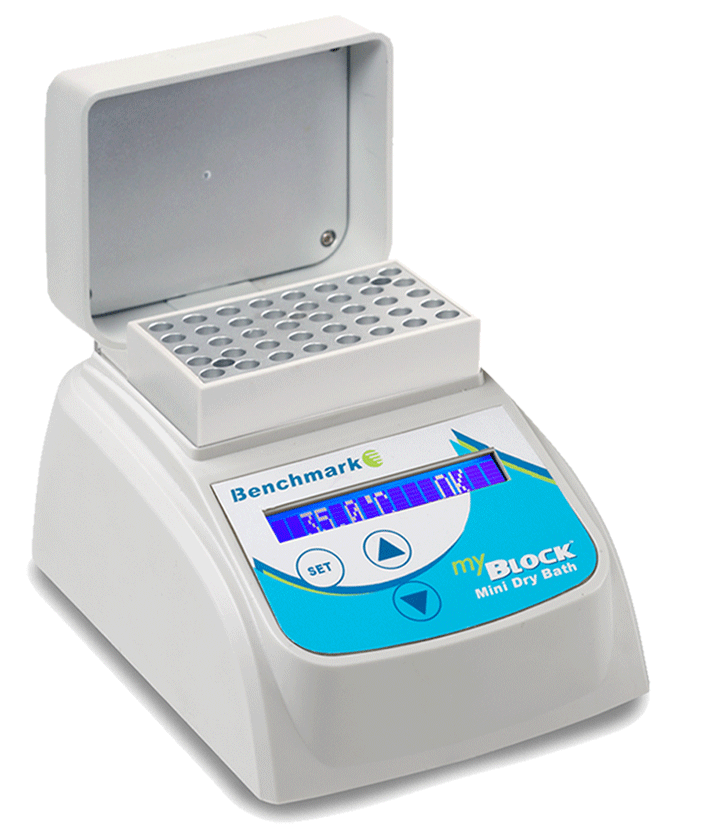

MyBlock™ HL with Heated Lid
|
MyBlock™ HL with Heated Lid
The new MyBlock™ HL is the first and only mini heat block featuring a heated
lid for protecting samples against unwanted condensation and evaporation.
Both the block and lid temperature can be selected independently in increments
of 0.1°C, making this MyBlock the ideal choice for the most temperature sensitive
applications, including immunoassays, LAMP assays, enzyme reactions & other
temperature hyper-sensitive procedures
- Heated lid prevents evaporation & condensation
- Compact, fits in the palm of your hand
- Independant temperature control of lid & block
- Exchangeable blocks for 0.2 to 0.5ml tubes
- Room temperature to 37°C in just 2 minutes
SPECIFICATIONS
|
Temp. Range:
|
Ambient +5 to 100°C |
|
Temp. Accuracy:
|
+/- 0.3°C |
|
|
0.1°C
|
|
Temp. Uniformity:
|
+/- 0.2°C
|
|
|
4 x 6 x 4.5 in./ 10.5 x 15 x 11.5cm
|
|
Block Dimensions:
|
1.85 x 2.8 x 1.25 in. / 4.7 x 7.1 x 3.2 cm |
|
Weight:
|
2 lbs / 1kg |
|
Electrical:
|
Universal Voltage, 100 to 240V, 50-60Hz, 50W
|
|
Warranty:
|
2 Years |
|
| BSH200-HL |
MyBlock™ HL Mini Dry Bath with Heated Lid, 100-240V (US Plug) |
$395.57 |
|
| BSH200-HL-E |
MyBlock™ HL Mini Dry Bath with Heated Lid, 100-240V (European 2 prong plug) |
$395.57 |
|
|
| BSH100-02 |
Block, 40 x 0.2ml tubes or 5 PCR strips of 8 tubes each |
$85.20 |
|
| BSH100-05 |
Block, 24 x 0.5ml centrifuge tubes |
$85.20 |
|
| BSH100-15HL |
Block, 15 x 1.5ml Centrifuge Tubes for Dry Bath with Heated Lid |
$85.20 |
|
|

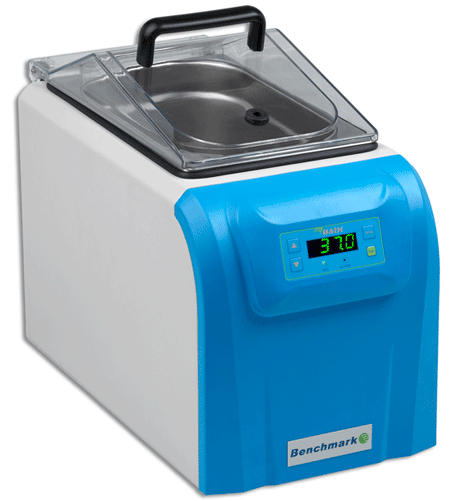

MyBath
|
MyBath
This compact 4 liter water bath features easy to use controls that allow the user to digitally select and monitor temperature. Its hinged lid provides a secure, covered environment and can be flipped open (to the rear) or completely and instantly removed at the user's option.
The MyBath is also the only water bath that comes with test tube racks for 50ml, 15ml and 1.5/2.0ml tubes, making it complete and ready to use.
Designed with the molecular biology lab in mind, the MyBath 4 liter is the complete personal water bath.
- Digital accuracy and convenience
- Includes tube racks for 1.5/2.0ml, 15ml and 50ml tubes
- Quik-CAL™ user calibration function
- Hinged lid is also removable
- Less than 8" wide

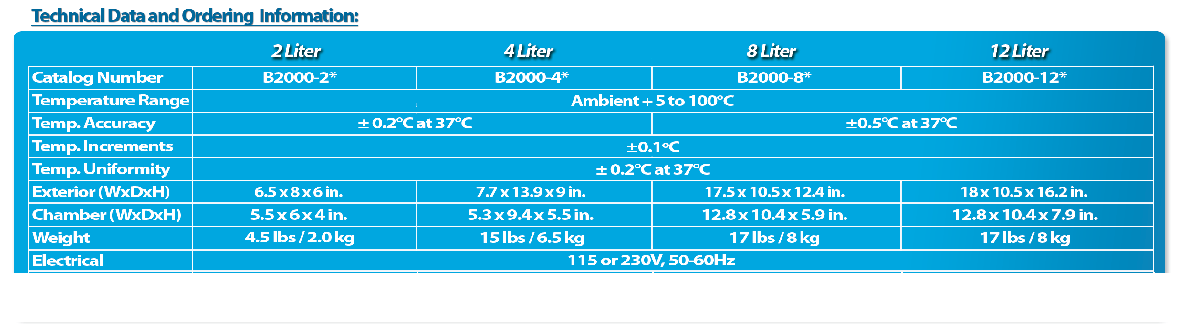

SPECIFICATIONS
|
| B2000-2 |
MyBath™ 2L Digital Water Bath, 115V |
$546.21 |
|
| B2000-2-E |
MyBath™ 2L Digital Water Bath, 230V |
$546.21 |
|
| B2000-4 |
MyBath™ 4L Digital Water Bath, 115V |
$836.83 |
|
| B2000-4-E |
MyBath™ 4L Digital Water Bath, 230V |
$836.83 |
|
| B2000-8 |
MyBath™ 8L Digital Water Bath, 115V |
$920.98 |
|
| B2000-8-E |
MyBath™ 8L Digital Water Bath, 230V |
$920.98 |
|
| B2000-12 |
MyBath™ 12 Digital Water Bath, 115V |
$1,098.63 |
|
| B2000-12-E |
MyBath™ 12L Digital Water Bath, 230V |
$1,098.63 |
|
|

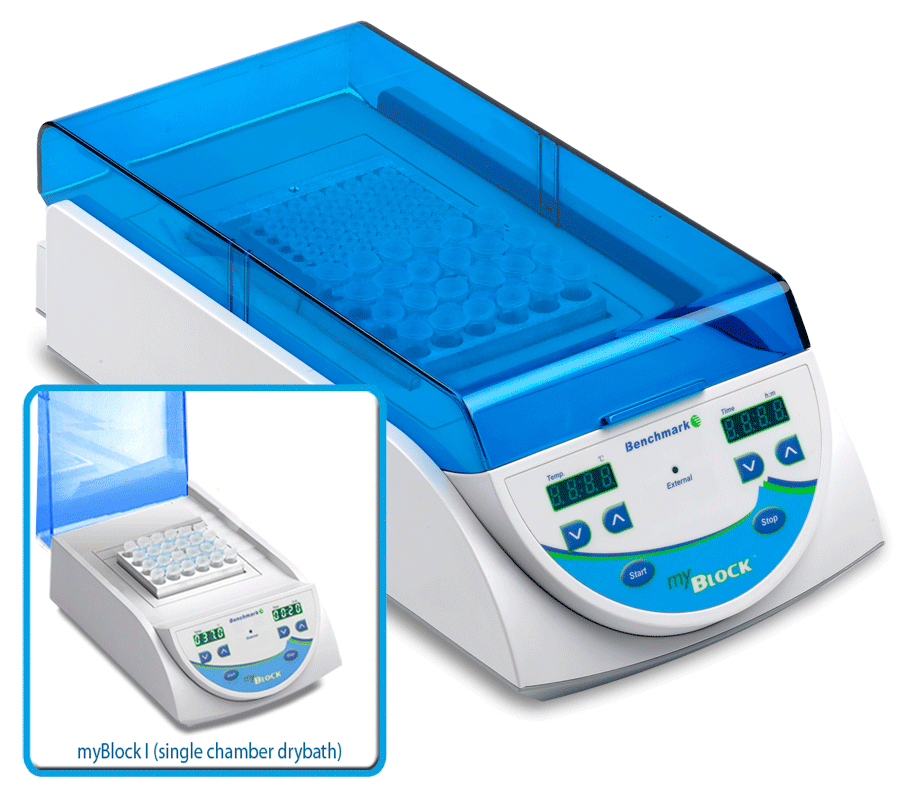

myBlock
|
myBlock
Individually Controlled Dual Chamber Dry Bath
Benchmark's myBlock series is a "next generation" product line that introduces several major advantages over traditional dry baths. They are the first digital dry baths to include advanced microprocessor controls, timed or continuous operation and a removable hinged lid. In addition, an optional external temperature feedback probe can be positioned directly inside a sample tube, providing real-time control and monitoring of actual sample temperature.
The myBlock's transparent lid helps to promote better uniformity and minimize temperature stratification in the block by maintaining a warm air jacket layer. It also helps to reduce energy consumption by minimizing heat loss to the environment. The hinged lid can be flipped open (to the rear), or easily removed (lifted off) to
accommodate taller tubes.
Both the single and dual block models can be ordered in a configuration that includes our unique Quick-Flip™ blocks. These universal blocks accept tubes from 0.5 to 2.0ml and, with just a quick flip to the other side, accomodate 0.2ml tubes, PCR strips or (in the dual block model only) a PCR plate. Other blocks are available for tubes up to 50ml.
- Digital temperature control (set and walk away)
- Hinged lid (improves uniformity & conserves energy)
- External (optional) temperature probe (measures actual sample temperature
- Available with Quick-Flip universal blocks (supports all common tube sizes, PCR strips and PCR plates) Patent Pending
SPECIFICATIONS
|
Temperature Range:
|
Ambient +5° to 105°C
|
|
Temperature Accuracy::
|
± 0.1% |
|
|
± 0.2% |
|
|
0.1°C |
|
|
Off or 1 min. to 99 hr 59 min. |
Dimensions (Single):
Dimensions (Dual):
|
7 x 10 x 5 in. / 18 x 25 x 13 cm
6.3 x 145 x 5 in. / 16 x 36.5 x 13 cm
|
|
Weight (Single):
Weight (Dual):
|
10 lbs / 4.5kg
8 lbs / 4kg
|
|
Warranty:
|
Two Years
|
|
|
120V or 230V, 50-60Hz |
|
| BSH5001 |
myBlock l™ - digital dry bath, single chamber, without blocks, 115V |
$417.91 |
|
| BSH5001-E |
myBlock l™ - digital dry bath, single chamber, without blocks, 230V |
$417.91 |
|
| BSH5002 |
myBlock ll™- digital dry bath, dual chamber, without blocks, 115V |
$520.29 |
|
| BSH5002-E |
myBlock ll™- digital dry bath, dual chamber, without blocks, 230V |
$520.29 |
|
| BSH5001-1B |
myBlock l™- digital dry bath with 1 Quick-Flip blocks (BSWCMB) for tubes (0.2 to 2.0ml, PCR strips and PCR plates, 115V |
$536.85 |
|
| BSH5001-1B-E |
myBlock l™- digital dry bath with 1 Quick-Flip blocks (BSWCMB) for tubes (0.2 to 2.0ml, PCR strips and PCR plates, 230V |
$536.85 |
|
| BSH5002-2B |
myBlock ll™- digital dry bath with 2 Quick-Flip blocks (BSWCMB) for tubes (0.2 to 2.0ml, PCR strips and PCR plates, 115V |
$753.86 |
|
| BSH5002-2B-E |
myBlock ll™- digital dry bath with 2 Quick-Flip blocks (BSWCMB) for tubes (0.2 to 2.0ml, PCR strips and PCR plates, 230V |
$753.86 |
|
|

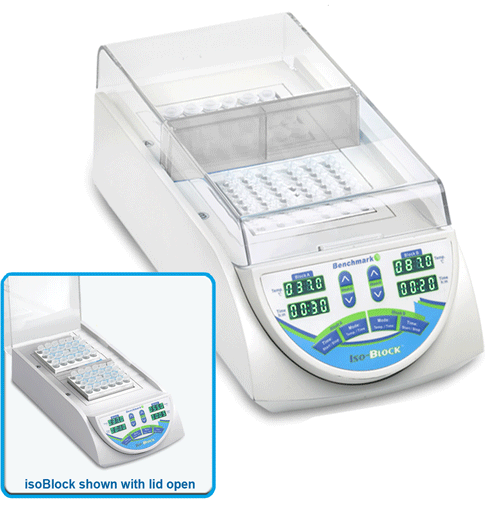

IsoBlock
|
IsoBlock
Benchmark's new IsoBlock dry bath is ideal for incubation of samples
at two different temperatures, in a single compact unit. The two
chambers are separated by an insulated wall and are controlled
independently, allowing IsoBlock to serve as two dry baths in one.
The hinged (and removable) lid is also designed with a dividing wall.
When closed, this dividing wall acts as a barrier, preventing air transfer
between chambers.
The control panel features large digital displays of both time and
temperature. Both settings of a block can be adjusted at any point,
without affecting the settings of the other block. The timer function is
non-mandatory; IsoBlock can be used for continuous heating.
Various blocks are available for accommodating nearly all popular
tube sizes. In addition, the unique Quick-Flip™ universal blocks
accept tubes from 0.5 to 2.0ml and, with just a quick flip to
the other side, they also accommodate 0.2ml tubes or PCR strips.
- Two isolated chambers (independent control of time & temp.)
- Digital temperature control (set and walk away)
- Hinged lid (improves uniformity & conserves energy)
- Available with Quick-Flip universal blocks (supports all common tube sizes and PCR strips) Patent Pending
SPECIFICATIONS
|
Temperature Range:
|
Ambient +5° to 105°C
|
|
Temperature Accuracy::
|
± 0.1% |
|
|
± 0.2% |
|
|
0.1°C |
|
|
Off or 1 min. to 99 hr 59 min. |
|
|
6.3 x 145 x 5 in. / 16 x 36.5 x 13 cm
|
|
Weight:
|
10 lbs / 4.5kg
|
|
Warranty:
|
Two Years
|
|
|
120V or 230V, 50-60Hz |
|
| BSH6000 |
isoBlock™ - digital dry bath, with two independently controlled chambers, without blocks, 115V |
$712.02 |
|
| BSH6000-E |
isoBlock™ - digital dry bath, with two independently controlled chambers, without blocks, 230V |
$712.02 |
|
| BSH-TP1 |
External Temperature Probe |
$177.77 |
|
|

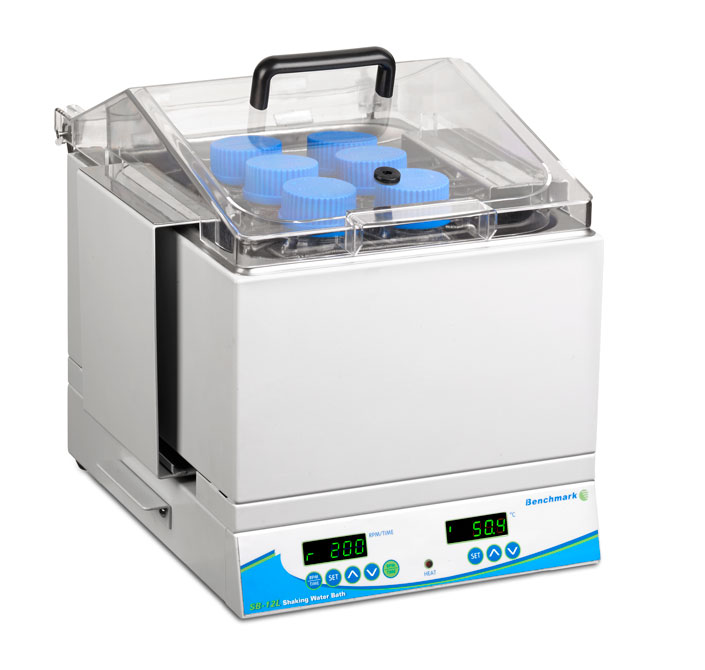

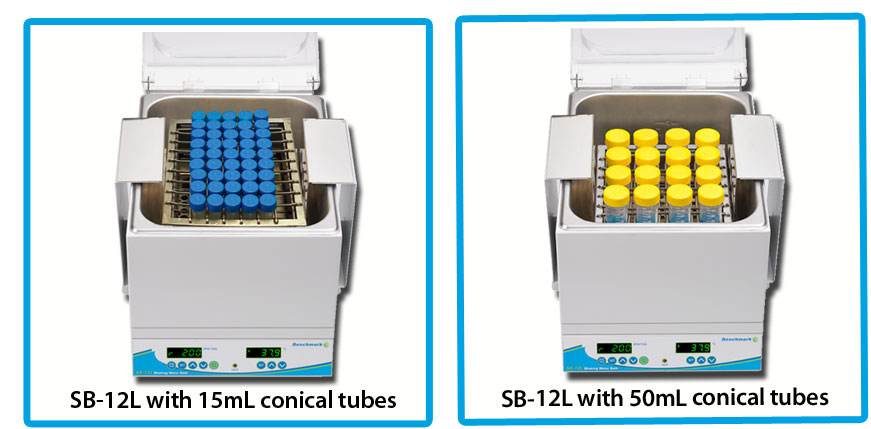

SB-12L Shaking Water Bath
|
SB-12L Shaking Water Bath
This compact shaking water bath utilizes the well proven, belt-less motor drive system from
our popular Orbi-Shaker™ Series, with the addition of precision temperature control up to 80°C.
The seamless, stainless steel chamber has a 12 liter capacity and includes a universal spring-loaded platform for securing 15 & 50ml test tubes, as well as Erlenmeyer flasks and media bottles up to 1 liter. A hinged and removable lid is also included to reduce energy waste, prevent splashing and divert condensation away from samples.
Easy to use controls allow the user to digitally select and monitor time, temperature and shaking speed, while a constant monitoring system ensures accuracy over each parameter.
- Orbital shaking motion
- Included spring platform accepts tubes, bottles and flasks
- Digital control of time, temperature and speed
- Compact design, conserves benchspace
SPECIFICATIONS
|
Temp. Range:
|
Ambient +5 to 80°C |
| Speed Range: |
30 to 200 rpm |
| Orbit: |
25mm / 1 in. |
|
Temp. Accuracy:
|
+/- 0.3°C (at 37°C) |
|
Temp. Increments:
|
0.1°C
|
|
Temp. Uniformity:
|
+/- 0.2°C (at 37°C)
|
|
Capacity:
|
12L |
|
Dimensions:
(w x d x h)
|
12.2 x 13.5 x 12 in.
31 x 34.5 x 30 cm )
|
|
Chamber:
|
Stainless Steel |
|
Chamber Dimensions:
|
5.3 x 9.4 x 5.5 in. / 13.5 x 24 x 14 cm |
|
Timer:
|
1 min. to 48 hours, or continuous |
|
Weight:
|
15 lbs / 6.5 kg) |
|
Electrical:
|
115V or 230V, 50-60Hz, 400W
|
|
Warranty:
|
2 Years |
|
| SB0012 |
SB-12L Shaking Water Bath, 115V |
$2,708.10 |
|
| SB0012-E |
SB-12L Shaking Water Bath, 115V |
$2,708.10 |
|
| SB0012-T1520 |
Optional Rack for 1.5/2.0 mL microtubes |
$75.74 |
|
| SB0012-T5 |
Optional Rack for 0.5 mL microtubes |
$75.74 |
|
|
All contents Copyright 2024 by SouthPointe Surgical
Supply, Inc.
Any information on this website may not be copied, reproduced or
distributed without prior written permission. Privacy
Policy
|
