TubeRoller Tube and Bottle Roller

TubeRollers
Benchmark TubeRollers are designed for the gentle, throrough mixing of a variety of containers, including Vacutainers™, bottles, test tubes, centrifuge tubes and roller botles. Both models (5 roller and 10 roller) operate at a constant 38rpm, chosen as the optimum speed for the broadest range of mixing requirements.
As the roller mechanism rotates through each complete revolution, the right side of each roller is gently elevated about 0.5 in (13mm) and returns to the horizontal starting position. This additional, gentle up/down motion provides a "wave" effect and guarantees that the entire sample is subjected to complete, thorough mixing, end to end. This built in tilt feature provides a level of homogeneous mixing uniformity that can not be matched by any stationary roller apparatus.
From blood collection tubes to roller bottles, Benchmark TubeRollers are the ideal choice for research, clinical laboratories and doctors' offices.

Gentle rolling motion
Smooth +/-5° tilt action
For tubes/bottles from 8mm to 200mm diameter

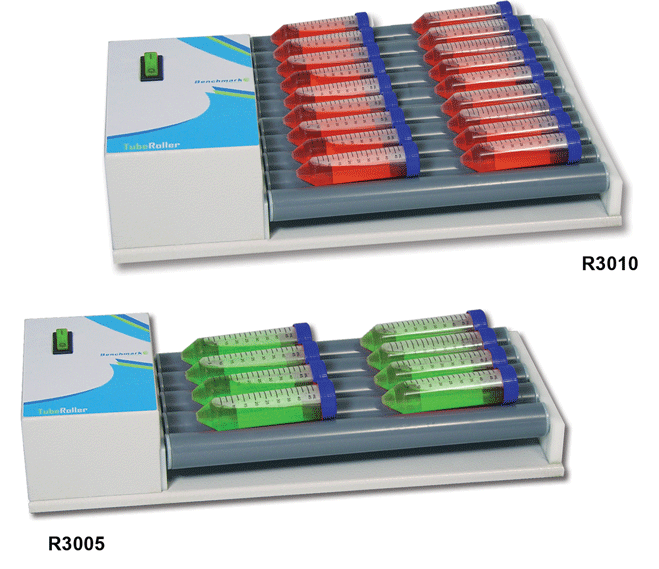

Two models: 5 roller and 10 roller

SPECIFICATIONS

Speed:	Fixed, 38 rpm (+/- 10%)
Tilt Angle:	+/- 5°
Motion:	Simultaneous roll & tilt
Operating Temp. Range	+4 to +40°C
Dimensions: (w x d x h)	R3005: 18 x 7 x 3.5in. / 45 x 18 x 9 cm R3010: 18 x 14 x 3.5 in./ 45x 36 x 9 cm
Number of Rollers:	R3005: 5 / R3010: 10
Weight:	R3005: 5kg (11bs) / R3010: 8kg (17.6lbs)
Roller Dimensions::	12 x 12.5 in. / 3 x 32 cm
Vessels Accepted::	8mm to 200mm (diameter)
Roller Spacing:	5mm (rollers are on 35mm centers)
Electrical:	115V or 230V, 50-60Hz
Warranty:	2 Years

R3005	TubeRoller with 5 rollers, 115V	$829.22
R3005-E	TubeRoller with 5 rollers, 230V	$829.22
R3010	TubeRoller with 10 rollers, 115V	$1,240.58
R3010-E	TubeRoller with 10 rollers, 230V	$1,240.58
