HEINE C 2.3 Binocular Loupes
The cost-effective all-purpose loupe
Ideal for dental laboratories and general medical examination.
- Crisp, clear images. Multi-coated, scratch-resistant silica glass lenses produce crisp, clear images.
- Flexibility for precise adjustment. Independently adjustable PD controls ensure precise alignment of the optics.
- Super lightweight and comfortable – only 46 g. Flexible coil temples wrap-around to fit the user’s anatomy securely and comfortably. Spring-loaded temples will adjust to the user’s anatomy. Lightweight metal frame.
- The ideal all-purpose loupe. The feather-light weight, low-profi le design and low cost of the C 2.3 loupe make it the ideal all-purpose loupe.
- Lowprofile design. Compact, low profile optics allow the user to easily look over the loupes for non-magnified view.
- Working distance. 340mm or 450mm (13 or 18 inches).
- Also available as C 2.3 K on Lightweight Headband.
We can only ship Heine Products within the USA.
|
HEINE C 2.3 Binocular Loupes
|
|
HEINE HR® 2.5x
High Resolution Binocular Loupes
with i-View loupe mount
2.5 x Magnification:The increase in magnification over 2 x is greater than the figures suggest. HR 2.5 x loupes offer an excellent balance between high magnification, field of view, depth of field, and ease of use. The 2.5 x loupes are ideal for a wide range of applications such as dental, ophthalmic, cosmetic and reconstructive surgery. The HR 2.5 x is our most popular model. Ideal for surgery and dental surgical procedures.
- Achromatic optics for crisp, bright images with color correction.
- Lightweight (51 g).
- Water-resistant.
- Independent adjustment of left and right optics for perfect PD adjustment.
- High magnification with a large field of view and excellent depth of field.
- i-View loupe mount provides any angle of view and flips up the optics independently
of the optional LED LoupeLight.
Mounting Options:
HEINE S-Frame®
- Maximum comfort with a modern, ergonomic design.
- Malleable temples and nose pad can be customized to fit any face perfectly.
- Innovative materials – Carbon-Kinetium reduces weight (24 g).
- Tough polycarbonate protective lenses.
- Optional clip-in correction frame for prescription lenses.
HEINE Professional L® Headband with S-Guard
- S-Guard splash protection.
- Ergonomic nose pad for comfort during long procedures.
- Fully adjustable for height and width to fit any head.
- Hygienic and comfortable leather cushions.
- Optional clip-in correction Frame for prescription lenses.
HEINE Professional L® Headband without S-GUARD
- Ideal for spectacle-wearers in combination with their own spectacles.
- Ergonomic nose pad for comfort during long procedures.
- Fully adjustable for height and width to fit any head.
- Hygienic and comfortable leather cushions.
| HR 2.5 x Specifications |
| Working distance |
340mm |
420mm |
520mm |
| Field of view |
90 |
130 |
180 |
| Depth of field |
110 |
180 |
260 |
We can only ship Heine Products within the USA.
|

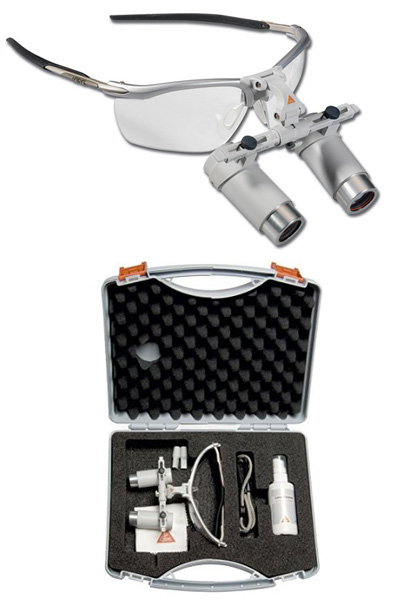

HR 2.5x optics with i-View on S-FRAME with the LoupeLight 2
|
|
HEINE HRP®
High Resolution Prismatic Binocular Loupes
with i-View loupe mount
HRP Binocular Loupes of 3.5x magnification or higher are recommended for fine surgical procedures where high magnification is necessary, for example in endodontal, vascular, neuro, and intricate orthopedic surgery and for experienced users. HRP loupes have been designed to provide the largest field of view and best depth of field possible for each magnification.
- Achromatic optics for crisp, bright images from edge to edge.
- Lightweight (85 g).
- Water-resistant.
- Independent adjustment of left and right optics for perfect PD adjustment.
- Highest magnification: Choice of 3.5 x, 4 x and 6 x.
- i-View loupe mount provides any angle of view and flips up the optics independantly of the optional LED LoupeLight
Mounting Options:
HEINE S-Frame®
- Maximum comfort with a modern, ergonomic design.
- Malleable temples and nose pad can be customized to fit any face perfectly.
- Innovative materials – Carbon-Kinetium reduces weight (24 g).
- Tough polycarbonate protective lenses.
- Optional clip-in correction frame for prescription lenses.
HEINE Professional L® Headband with S-Guard
- S-Guard splash protection.
- Ergonomic nose pad for comfort during long procedures.
- Fully adjustable for height and width to fit any head.
- Hygienic and comfortable leather cushions.
- Optional clip-in correction Frame for prescription lenses.
| HRP Specifications |
| Working distance in mm |
HRP 3.5x/420 |
HRP 4x/340 |
HRP 6x/340 |
| Field of view in mm |
65 |
50 |
40 |
| Depth of field in mm |
60 |
40 |
30 |
We can only ship Heine Products within the USA.
|

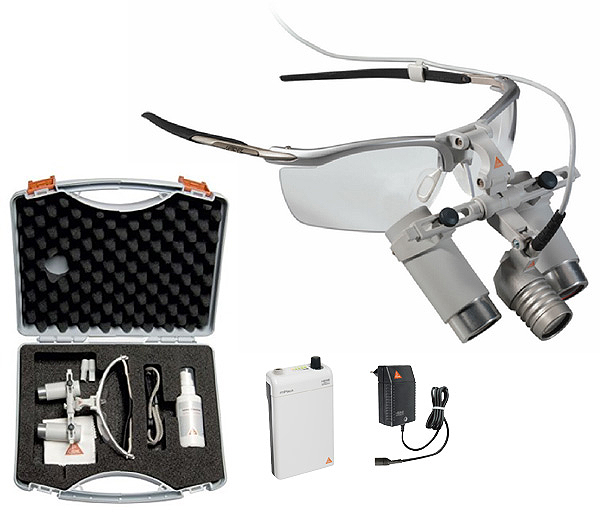

HRP optics with i-View on S-FRAME with the LoupeLight 2
|
C-008.32.226
C-008.32.265
|

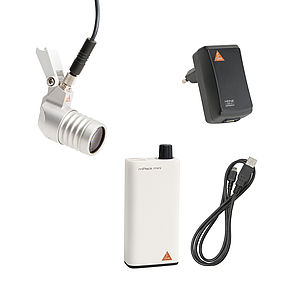

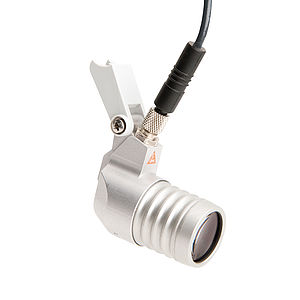

HEINE® LoupeLight 2
Compact LED HQ Headlight – now even brighter
The combination of light and loupe delivers the ultimate in performance as high quality illumination with LED HQ maximises the image quality of the loupe. For a perfect view and a precise diagnosis, the LoupeLight 2 is now 25% brighter than its predecessor model, with a homogeneous edge-to-edge illumination of typ. 55,000 lux.
For intensive use, the LoupeLight 2 now features a replaceable connecting cord which connects the device to the mPack mini – the new and compact power source for the LoupeLight 2.
PERFORMANCE
Coaxial Illumination: Compact coaxial design ensures a completely shadow-free image and allows for excellent illumination of difficult to see areas.
Precision multiple lens optical system consisting of four high-quality lenses. Completely homogeneous illumination of the whole field of view and a clearly defined light spot.
LED in HQ: The new standard in LED illumination defining optimal light intensity, homogeneity and colour rendering for the most accurate diagnosis. Red is red, blue is blue. Colour temperature: typ. 4,000 K, Colour Rendering Index (CRI) > 90, special index for red colours (R9) > 75.
We can only ship Heine Products within the USA.
|
|
