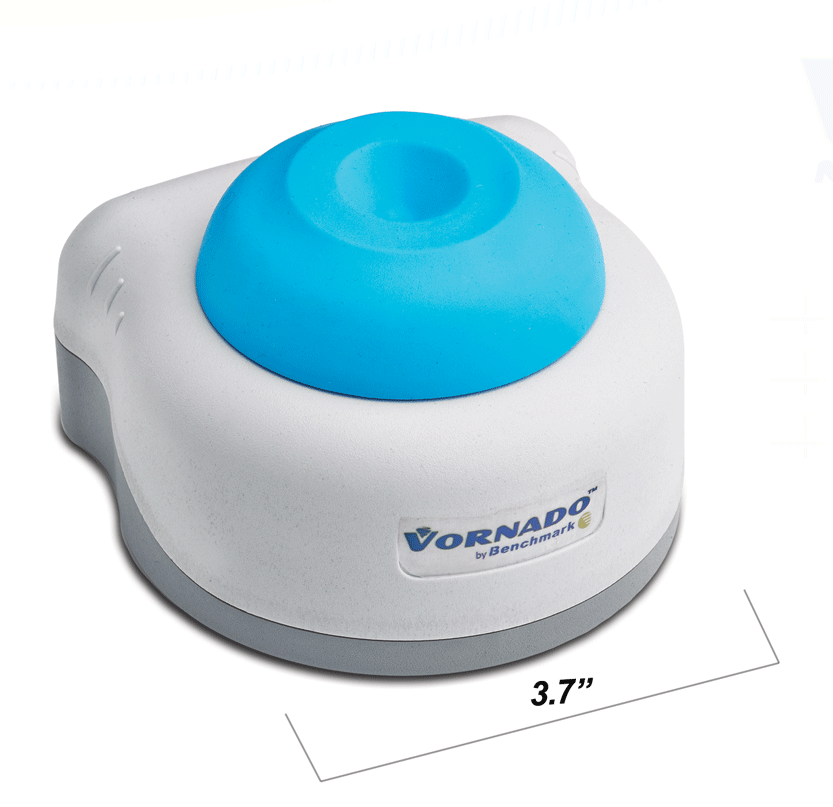

Vornado™ Miniture Vortex Mixer
Powerful is the best word to describe this mini vortexer.
With a 4mm orbit and fixed speed of 2800rpm, the Vornado
instantly vortexes even the largest samples, including nearly full
50 ml tubes. Despite its powerful motor, the Vornado has a footprint
of less than 4x4 inches, allowing it to fit on even the most crowded bench.
Insta-Touch operation means that the motor is automatically activated with slight
pressure on the center cup head. Operation is smooth, quiet and efficient. When
pressure is removed, operation immediately ceases.
The Vornado's unique head design prevents liquids from entering the housing,

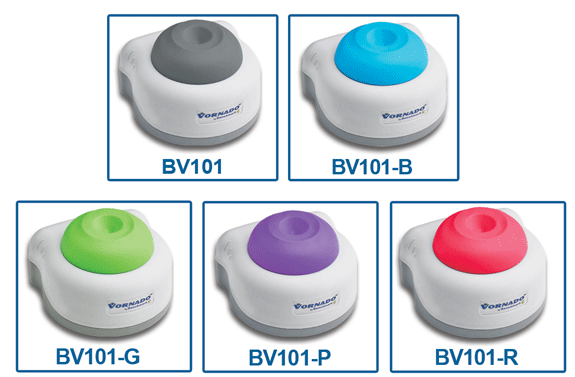

prolonging motor life. The unit is available with five different cup head colors
- Powerful vortexing for tubes up to 50ml
- Inst-Touch™ pressure activated operation
- "Mini Sized", less than 4 in. wide
- Available in five color configutaions
SPECIFICATIONS
|
Speed:
|
2800 rpm |
|
Orbit:
|
4mm |
|
Motor Activation:
|
Insta-Touch™ pressure activation |
|
|
3.7 x 3.9 x 2.6 in.
9.4 x 9.9 x 6.6 cm
|
|
Weight:
|
1 lbs. / 0.4 kg |
|
Electrical:
|
Universal Voltage
100-240V, 50-60 Hz, 0.7A
|
|
Warranty:
|
2 Years |
|
|
|
|
BenchMixer™ Vortex Mixer
The BenchMixer™ sets the new standard in vortex mixing. With advanced Q-Drive™ technology, the BenchMixer provides
smooth instant vortexing of even the largest sample sizes, including full 50ml tubes. The unique counter-balance system
creates maximum vortexing action, while minimizing noise and excessive vibration. This results in quieter, more efficient and
longer lasting operation.
Other features include: "no-walk" suction feet, cold room/incubator compatibility and spill-proof electronic controls.
- Powerful motor for INSTANT vortexing
- Continuous or "touch" operation
- Q-Drive™ dynamic balancing system
- Variable speed from 200 to 3200 rpm
- Wide variety of accessories
SPECIFICATIONS
| Speed: |
200 to 3200 rpm |
| Operating modes: |
Touch or continuuous |
| Orbit: |
3mm
|
| Operating Temp. Range: |
+4 to +65°C |
Dimensions:
(w x d x h) |
(w x d x h)
5 x 6.3 x 6.7 in.
13 x 16 x 17 cm
|
| Weight: |
8.4 lbs (3.8 kg)
|
| Electrical: |
115V, 60Hz or 230V, 50Hz, 180W |
| Warranty: |
2 Years |
|
| BV1000 |
BenchMixer™ Vortexer 115V |
$233.17 |
|
| BV1000-E |
BenchMixer™ Vortexer 230V |
$233.17 |
|

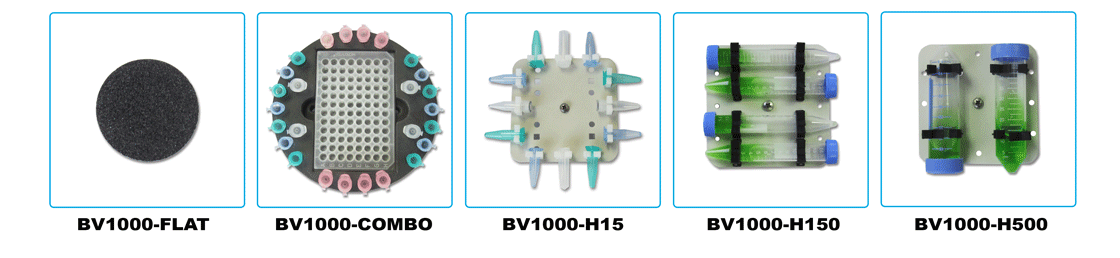

ACCESSORIES
|
| BV1000-FLAT |
Vortexer Flat head |
$$33.51 |
|
| BV1000-COMBO |
COMBO™ head |
$60.13 |
|
| BV1000-H15 |
Horizontal head, for 12 x 1.5ml |
$85.37 |
|
| BV1000-H150 |
Horizontal head, for 4 x 15ml |
$85.37 |
|
| BV1000-H500 |
Horizontal head, for 2 x 50ml |
$85.37 |
|
|
|

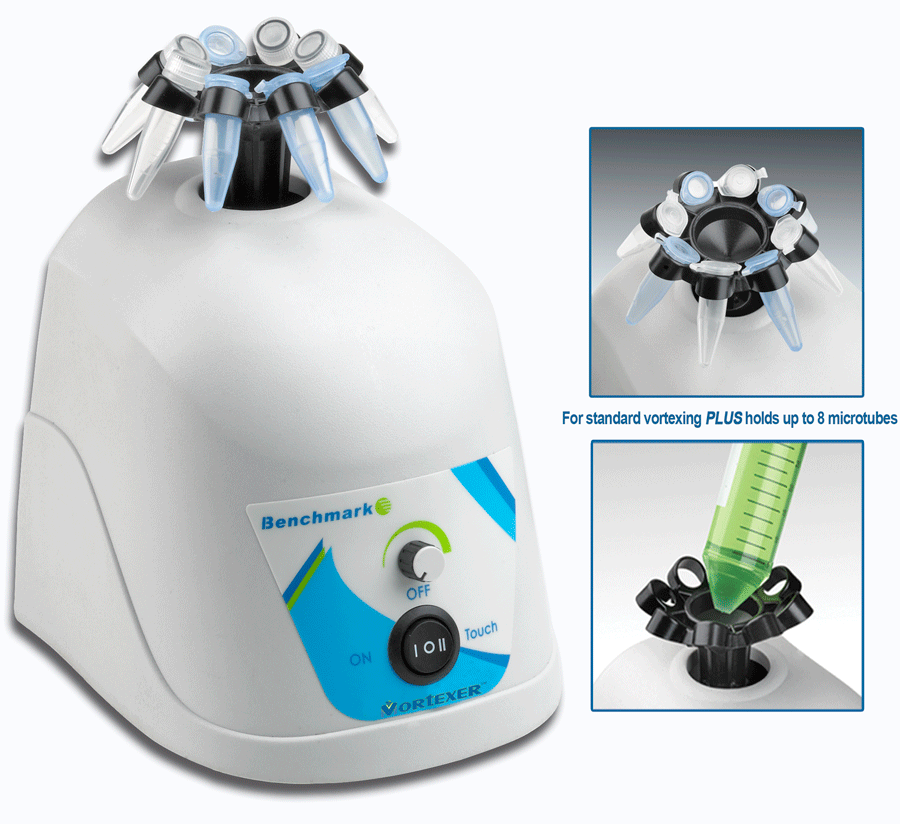

Mortexer™ Vortex Mixer
The Mortexer™ is MORE than your standard vortex mixer. The unique design of the Multi-Head™ (included) features a traditional cup head for general purpose mixing, plus holds up to eight microcentrifuge tubes.
The drive system is balanced with Q-Drive™ technology, providing a smooth vortexing action, while minimizing noise and excessive vibration. This results in quieter, more
efficient and longer lasting operation. Increased speed, up to 3400 rpm produces an instant vortex of even the largest sample sizes, including full 50ml tubes.
Other features include: "no-walk" suction feet, cold room/incubator compatibility and spill-proof electronic controls. Two year warranty
- Unique Multi-Head™ for general purpose vortexing PLUS holds up to eight microtubes (Patent Pending)
- Powerful motor for INSTANT vortexing
- Continuous or "touch" operation
- Q-Drive™ dynamic balancing system
- Variable speed from 200 to 3400 rpm
- Wide variety of accessories
SPECIFICATIONS
| Speed: |
200 to 3400 rpm |
| Operating modes: |
Touch or continuuous |
| Orbit: |
3mm
|
| Operating Temp. Range: |
+4 to +65°C |
Dimensions:
(w x d x h) |
(w x d x h)
5 x 6.3 x 6.7 in.
13 x 16 x 17 cm
|
| Weight: |
8.4 lbs (3.8 kg)
|
| Electrical: |
115V or 230V, 180W |
| Warranty: |
2 Years |
|
| BV1005 |
Mortexer™ Vortexer 115V |
$266.13 |
|
| BV1005-E |
Mortexer™ Vortexer 230V |
$266.13 |
|
|
|

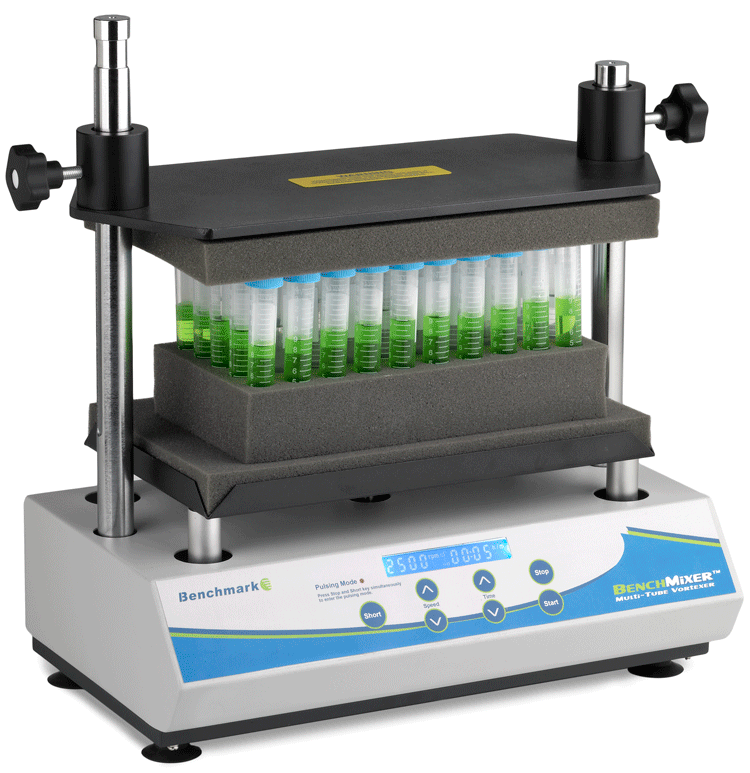

BenchMixer™ XL Multi-Tube Vortex Mixer
The BenchMixer™ XL is a heavy duty vortex mixer designed to facilitate hands-free mixing in tubes, flasks, vials or cylinders. It is ideal for the QuEChERS pesticide analysis method and is instantly adaptable to an exceptionally broad range of vessels, racks and applications (horizontal or vertical). The precisely balanced drive system includes an oversized motor that delivers accurate, reproducible speeds up to 2500rpm with rattle-free operation and minimal vibration. The programmable pulsing function allows for time specific interval mixing, increasing agitation.
The 7x12 inch platform accommodates a wide variety of standard, pre-drilled tube racks (a complete listing can be found in the ordering information section below). Additionally, BenchMixer XL can easily be adapted to almost any type of vessel commonly found in the laboratory (contact us for details).
Using BenchMixer XL is easy; after loading the sample rack and tightening the locking knobs, select the desired speed and run time on the large digital control panel. Then, simply press "Start" and the BenchMixer XL will perform unattended mixing for up to 100 hours.
BenchMixer XL's large capacity and adaptability make it an ideal choice for
the medium to high throughput laboratory.
- Hands-free, high capacity vortexing
- Up to 2500rpm, a true vortex in every tube
- Assortment of accessories for a variety of tubes, flasks & plates
- Pulsing program for interval mixing
- Fits almost any tube rack
SPECIFICATIONS
| Speed: |
500 to 2500 rpm |
| Capacity: |
6 x 250ml |
| Orbit: |
3.6mm
|
| Timer: |
1 min. to 99 hr 59min. |
| Platform Dimensions: |
12 x 7 in. / 30 x 17.8 cm
|
Dimensions:
(w x d x h) |
15 x 9.2 x 16.5 in.
38.5 x 23.5 x 42cm
|
| Weight: |
13kg / 29lb
|
| Electrical: |
100 to 240V, 50-60 Hz |
| Warranty: |
2 Years |
|
| BV1010 |
BenchMixer™ XL Multi-Tube Vortexer, includes 50x12mm tube rack, 115V |
$2,640.53 |
|
| BV1010-E |
BenchMixer™ XL Multi-Tube Vortexer, includes 50x12mm tube rack, 230V |
$2,640.53 |
|

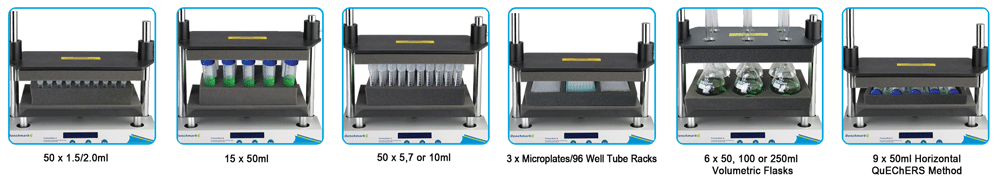

ACCESSORIES
|
| BV1010-05 |
Tube Rack, 72 x 0.5ml (8mm) |
$34.51 |
|
| BV1010-1520 |
Tube Rack, 50 x 1.5/2.0ml (10mm) |
$34.51 |
|
| BV1010-12 |
Tube Rack, 50 x 12mm |
$34.51 |
|
| BV1010-13 |
Tube Rack, 50 x 13mm |
$34.51 |
|
| BV1010-150 |
Tube Rack, 50 x 15ml (16.5mm) |
$34.51 |
|
| BV1010-500 |
Tube Rack, 15 x 50ml (29mm) |
$34.51 |
|
| BV1010-25 |
Tube Rack, 15 x 25mm |
$34.51 |
|
| BV1010-MP |
Rack for up to 3 microplates |
$132.49 |
|
| BV1010-50H |
Tube Rack, 7 x 50ml horizontal (QuEChERS) |
$33.35 |
|
|
